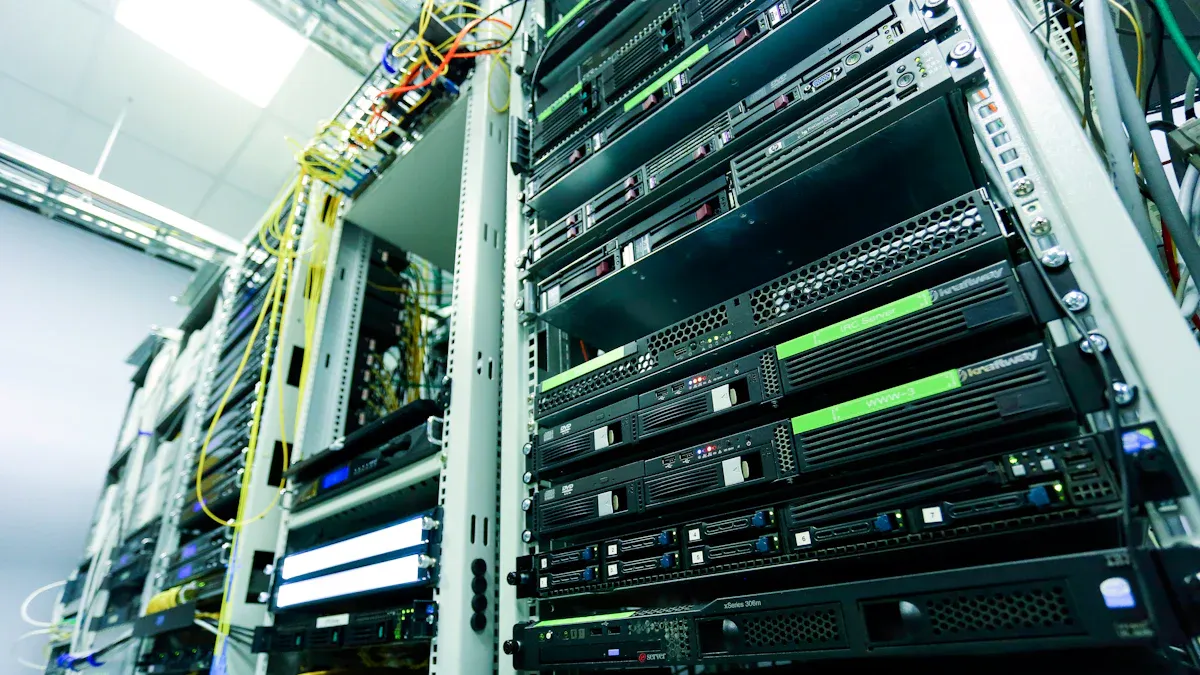

Cost-Effective OM2 MPO Trunk Cables Now Support 40G Data Center Upgrades

OM2 MPO Trunk Cable provides a viable pathway for 40G Data Center upgrades. This approach allows organizations to achieve these upgrades cost-effectively. It primarily leverages existing fiber infrastructure and specific, advanced transceiver technologies. This method represents a smart Cost-Effective Fiber Solution 1814 for many businesses. It maximizes previous investments, delivering substantial savings.

Key Takeaways

• OM2 MPO trunk cables offer a cheap way to upgrade data centers to 40G speeds.
• You can use existing OM2 fiber for 40G upgrades. This saves money on new cables.
• Modern 40GBASE-SR4 transceivers help OM2 fiber work for 40G over short distances.
• MPO connectors are important. They connect many fibers at once for 40G speeds.
• OM2 fiber works best for 40G over short distances, like 30 to 50 meters.
• Upgrading with OM2 fiber means less downtime and lower labor costs.
• Always clean MPO connectors and route cables carefully for good performance.
• OM2 is good for 40G now. But, you will need newer fibers for 100G or 400G speeds.

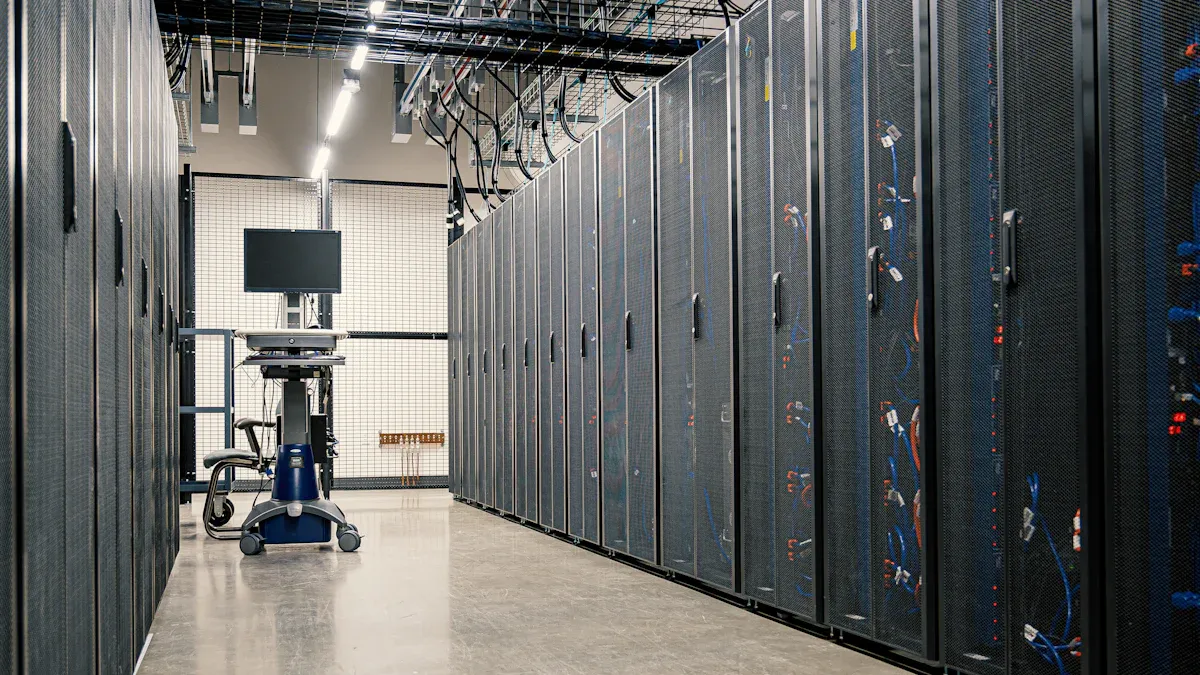

Understanding the 40G Data Center Upgrade Challenge

The Demand for Higher Bandwidth

Exponential data growth

Data centers today face immense pressure from an explosion of digital information. This exponential data growth drives the need for significantly higher bandwidth. For example, the global edge computing market will reach an estimated $140.0 billion by 2030. This growth comes from the need for real-time data processing and reduced latency. By 2025, approximately 75% of enterprise-generated data will process at the edge. The number of IoT devices, expected to reach nearly 30 billion by 2030, further highlights the importance of edge data centers. The adoption of 5G technology also boosts the data center networking market. Experts project this market to reach $38.3 billion by 2030, growing at a CAGR of 7.5%. This growth is fueled by 5G’s low latency, high-speed connectivity, and large bandwidth capabilities. Even CPU-intensive processes like crypto mining drive demand for data centers with high computing power. Crypto miners often require 1.0MW to 5.0MW of data center power for effective operations.

Application performance requirements

Modern applications demand robust performance. Digital transformation, including AI-based solutions and big data analytics, requires significant computing power. This directly translates to increased bandwidth requirements. Hyperscale operators now consume over 37% of total DRAM. This figure will likely increase as enterprises move workloads to the cloud. Advancements in DDR5 architectures offer 50% higher bandwidth. This enables data centers to handle AI workloads and real-time analytics more efficiently. Training large language models requires memory bandwidth exceeding 1TB/s. This drives the adoption of specialized high-bandwidth memory architectures. The AI server market will grow at a 30% CAGR through 2030. This directly correlates with increased DRAM content per server.

Traditional Upgrade Paths and Costs

OM3 and OM4 fiber deployments

Historically, data centers upgraded to higher speeds by deploying new fiber types. OM3 and OM4 multimode fibers became the standard for 10G, 40G, and even 100G short-reach applications. These fibers offer improved bandwidth capabilities over older OM1 and OM2 types. Many organizations invested heavily in these newer fiber infrastructures.

Significant capital expenditure

Upgrading to OM3 or OM4 fiber involves significant capital expenditure. This includes the cost of new fiber optic cables, connectors, and installation. Replacing an entire fiber plant is a costly and disruptive process. It often requires extensive planning and downtime. This financial burden can deter many data centers from pursuing necessary bandwidth upgrades.

The OM2 Infrastructure Dilemma

Widespread existing OM2 installations

Many data centers still operate with widespread existing OM2 fiber installations. These older infrastructures served their purpose well for lower speeds. They represent a substantial prior investment for many organizations. Replacing them entirely seems wasteful and expensive.

Perceived limitations for 40G

For a long time, the industry perceived OM2 fiber as having limitations for 40G. Its lower modal bandwidth compared to OM3 and OM4 suggested it could not reliably support these higher speeds. This perception created a dilemma for data center managers. They needed more bandwidth but faced the high cost of replacing their functional OM2 infrastructure.

Technical Feasibility: How OM2 MPO Trunk Cables Achieve 40G

Data centers often seek innovative solutions to meet increasing bandwidth demands without complete infrastructure overhauls. OM2 MPO Trunk Cable technology offers a surprising and effective pathway to 40G speeds. This section explores the technical underpinnings that make this possible.

Dispelling OM2’s 40G Limitations

Re-evaluating OM2 capabilities

For many years, industry professionals considered OM2 fiber unsuitable for high-speed applications like 40G. OM2 fiber, like its predecessor OM1, faced limitations in supporting higher data rates. This was primarily due to "pulse spreading" caused by differential mode delay (DMD). This characteristic historically prevented OM2 from properly supporting even 10 Gbps over longer distances. Specifically, OM2 has a 50 µm core diameter. It can support 10G up to 82 meters. The industry needed laser-optimized fibers, such as OM3 and later, to overcome these limitations by addressing modal dispersion. However, advancements in transceiver technology and a deeper understanding of fiber optics have led to a re-evaluation of OM2’s capabilities, especially for shorter links.

Evolution of transceiver technology

Transceiver technology has advanced significantly. Modern transceivers can compensate for some of the inherent limitations of older fiber types. These devices now employ sophisticated signal processing techniques. They effectively mitigate issues like modal dispersion. This allows them to transmit 40G signals over OM2 fiber for specific distances. This evolution means data centers can leverage their existing OM2 infrastructure. They do not always need to replace it with newer, more expensive fiber types.

Key Technology Enablers

Short-reach 40GBASE-SR4 transceivers

The development of 40GBASE-SR4 transceivers is crucial for OM2’s 40G capability. These transceivers operate over multimode fiber. They are specifically designed for short-reach applications. The "SR" in SR4 stands for short reach. The "4" indicates that the transceiver uses four parallel lanes for transmission and reception. Each lane carries 10 Gbps. This combines to achieve the total 40 Gbps data rate. These transceivers are optimized to work within the optical budget constraints of multimode fiber.

Parallel optics for multi-lane transmission

Parallel optics technology is fundamental to 40G transmission over multimode fiber. Instead of sending a single, high-speed signal over one fiber, parallel optics splits the 40G signal into four separate 10G signals. Each 10G signal travels over its own fiber strand. This approach reduces the per-fiber data rate. It makes it feasible for OM2 fiber to handle the transmission. The MPO connector facilitates this multi-fiber approach. It provides a compact and efficient way to manage these multiple fiber strands.

The Role of MPO Connectors in OM2 MPO Trunk Cables

High-density fiber connectivity

MPO (Multi-fiber Push On) connectors are essential for 40G upgrades using OM2 fiber. They provide high-density fiber connectivity. A single MPO connector can house 8, 12, or even 24 fibers. This allows for a compact and organized cabling solution. This high density is critical in modern data centers. Space is often at a premium. The MPO connector’s design supports the parallel optics required for 40GBASE-SR4.

Efficient multi-fiber management

MPO connectors simplify multi-fiber management. They allow technicians to connect multiple fiber strands with a single click. This significantly reduces installation time and complexity. For OM2 MPO Trunk Cable deployments, this means faster upgrades and less potential for error. The pre-terminated nature of MPO trunk cables further enhances efficiency. It ensures consistent performance and reduces on-site termination needs.

Link Loss Budget Considerations

Data centers must carefully manage the link loss budget. This ensures reliable 40G transmission over OM2 fiber. Each optical link has a maximum allowable signal loss. Transceivers specify this power budget. OM2 fiber exhibits higher attenuation compared to OM3 or OM4. Therefore, engineers must meticulously calculate all loss components. These components include cable attenuation, connector losses, and any splices. The total loss must remain below the transceiver’s specified limit for proper operation.

Meeting power budget requirements

Meeting power budget requirements is paramount for successful 40G upgrades with OM2. The 40GBASE-SR4 transceivers have specific power budgets. These budgets define the maximum optical loss the link can tolerate. Exceeding this budget results in signal degradation and unreliable data transmission. Data center professionals must perform a thorough link loss calculation. This calculation accounts for the length of the OM2 MPO trunk cable. It also includes the number and quality of MPO connectors. Each connector introduces a small amount of insertion loss. High-quality MPO connectors minimize this loss. They contribute significantly to maintaining a healthy power budget.

💡 Tip: Always use certified test equipment to measure actual link loss. This verifies calculations and ensures optimal performance.

Optimizing for short distances

Optimizing for short distances becomes a key strategy. OM2 fiber’s performance limitations become less significant over shorter link lengths. For 40GBASE-SR4 applications, OM2 typically supports distances up to 30 to 50 meters. These shorter runs inherently minimize signal attenuation. They also reduce the impact of modal dispersion. Data centers often have numerous short connections. Examples include inter-rack links or server-to-ToR switch connections. By targeting these specific scenarios, organizations can effectively leverage their existing OM2 infrastructure. High-quality MPO connectors further help. They minimize insertion loss at each connection point. This careful optimization ensures the link loss budget remains within acceptable limits.

Cost-Effectiveness: Maximizing Your Existing OM2 MPO Trunk Cable Investment

Data centers constantly seek ways to upgrade capabilities without incurring massive expenses. Leveraging existing OM2 MPO Trunk Cable infrastructure for 40G upgrades presents a highly cost-effective strategy. This approach significantly reduces capital expenditure and enhances operational efficiency. It also extends the useful life of current assets.

Direct Cost Savings

Organizations can achieve substantial financial benefits by choosing to upgrade with existing OM2 fiber. This method directly impacts the budget by avoiding major replacement projects and reducing new hardware purchases.

Avoiding complete fiber plant replacement

Replacing an entire fiber optic plant represents a monumental undertaking. It involves significant costs for new cables, connectors, and associated hardware. Data centers can bypass these expenses by utilizing their installed OM2 fiber. This strategy preserves the initial investment made in the existing cabling infrastructure. It eliminates the need to purchase and deploy thousands of meters of new OM3 or OM4 fiber. This avoidance of a full plant overhaul translates into immediate and substantial savings.

Reduced hardware procurement

Upgrading to 40G with OM2 fiber also minimizes the need for extensive new hardware procurement. Data centers do not need to purchase new patch panels, fiber distribution units, or other components specifically designed for newer fiber types. They can often reuse existing trays and cable management systems. This reduces the overall bill of materials for the upgrade project. The primary new hardware requirement typically involves compatible 40GBASE-SR4 transceivers. These transceivers are often more affordable than those required for longer-reach single-mode solutions.

Operational Efficiency Benefits

Beyond direct financial savings, leveraging OM2 fiber for 40G upgrades offers significant operational advantages. These benefits streamline the upgrade process and reduce ongoing operational expenditures.

Minimized downtime during upgrades

Fiber plant replacement projects often require extensive downtime. Technicians must de-commission old cables and install new ones. This process can disrupt critical data center operations. Upgrading with existing OM2 fiber significantly minimizes this downtime. The process primarily involves replacing transceivers and potentially some patch cables. This allows for a more phased and less intrusive upgrade. Data centers maintain higher availability for their services.

Lower labor costs for installation

Installing new fiber optic cabling is a labor-intensive process. It requires skilled technicians to pull, terminate, and test thousands of fiber strands. By reusing existing OM2 fiber, data centers drastically reduce these labor costs. Technicians primarily focus on connecting new transceivers and verifying link integrity. This simplifies the installation process. It also reduces the overall time and personnel required for the upgrade.

Extending Infrastructure Lifespan

The decision to upgrade with existing OM2 fiber is a strategic move. It extends the lifespan of valuable infrastructure assets. This approach maximizes return on investment and promotes sustainable data center practices.

Maximizing return on investment

Every piece of equipment in a data center represents a capital investment. Replacing functional OM2 fiber prematurely means abandoning that investment. By enabling 40G speeds on existing OM2, organizations maximize their return on investment. They extract more value from their initial cabling purchase. This extends the depreciation schedule of the fiber plant. It also defers future capital expenditures for fiber replacement.

Sustainable data center practices

Data centers increasingly focus on sustainability. Discarding perfectly functional fiber optic cables contributes to electronic waste. Reusing existing OM2 fiber aligns with green IT initiatives. It reduces the environmental impact associated with manufacturing and disposing of new cabling. This approach supports a circular economy model within the data center. It demonstrates a commitment to environmentally responsible operations.

Comparative Cost Analysis

Data center managers must carefully evaluate the financial implications of different fiber optic solutions. A comparative cost analysis between OM2 and newer fiber types like OM3/OM4 reveals significant savings when upgrading to 40G, especially for short-reach applications.

OM2 vs. OM3/OM4 for short-reach 40G

When considering 40G upgrades for short distances, the cost difference between using existing OM2 fiber and deploying new OM3 or OM4 fiber becomes substantial.

• Fiber Cost: New OM3 or OM4 fiber optic cabling represents a significant capital outlay. These cables are inherently more expensive per meter than the already installed OM2. Organizations avoid this direct purchase cost by reusing OM2.
• Installation Cost: Deploying new fiber requires extensive labor. This includes pulling cables, terminating connectors, and thorough testing. These tasks add considerable expense to any project. Utilizing existing OM2 infrastructure drastically reduces these labor costs. Technicians only need to connect new transceivers and verify link integrity.
• Transceiver Cost: Both OM2 and OM3/OM4 solutions for 40G short-reach applications typically use 40GBASE-SR4 transceivers. The cost of these transceivers is generally comparable across the different multimode fiber types. Therefore, the primary cost differentiator lies in the fiber infrastructure itself.
• Performance for Short Distances: For distances up to 30-50 meters, OM2 fiber, when paired with modern 40GBASE-SR4 transceivers, delivers comparable 40G performance to OM3 or OM4. This makes OM2 a technically viable and economically superior choice for these specific link lengths.

Total cost of ownership perspective

A comprehensive total cost of ownership (TCO) analysis further highlights the advantages of leveraging existing OM2 fiber for 40G upgrades. TCO extends beyond initial purchase prices. It includes all costs associated with an asset throughout its lifecycle.

• Reduced Initial Investment: The most immediate benefit comes from avoiding the capital expenditure for new fiber. This frees up budget for other critical data center investments.
• Lower Operational Expenses:

  • Minimized Downtime: Replacing an entire fiber plant can lead to prolonged service interruptions. Upgrading with existing OM2 MPO Trunk Cable minimizes downtime. This ensures business continuity and avoids revenue loss.
  • Reduced Labor: As mentioned, installation labor costs decrease significantly. This impacts both the initial deployment and any future maintenance.
  • Simplified Management: Maintaining a consistent fiber type across the data center simplifies inventory and troubleshooting.

• Extended Asset Lifespan: Reusing OM2 fiber extends the useful life of a previously installed asset. This maximizes the return on the original investment. It defers the need for a complete fiber overhaul for several years.
• Environmental Impact: Reusing existing infrastructure also aligns with sustainable practices. It reduces electronic waste and the carbon footprint associated with manufacturing and transporting new materials.

💡 Consider this: A data center with 1,000 short-reach 40G links could save hundreds of thousands of dollars by reusing OM2 fiber compared to a full OM3/OM4 deployment. These savings come from avoiding new cable purchases, reducing installation labor, and minimizing operational disruptions.

This holistic view of costs demonstrates that leveraging existing OM2 fiber for 40G upgrades is not just a short-term fix. It is a strategically sound, long-term financial decision for many data centers.

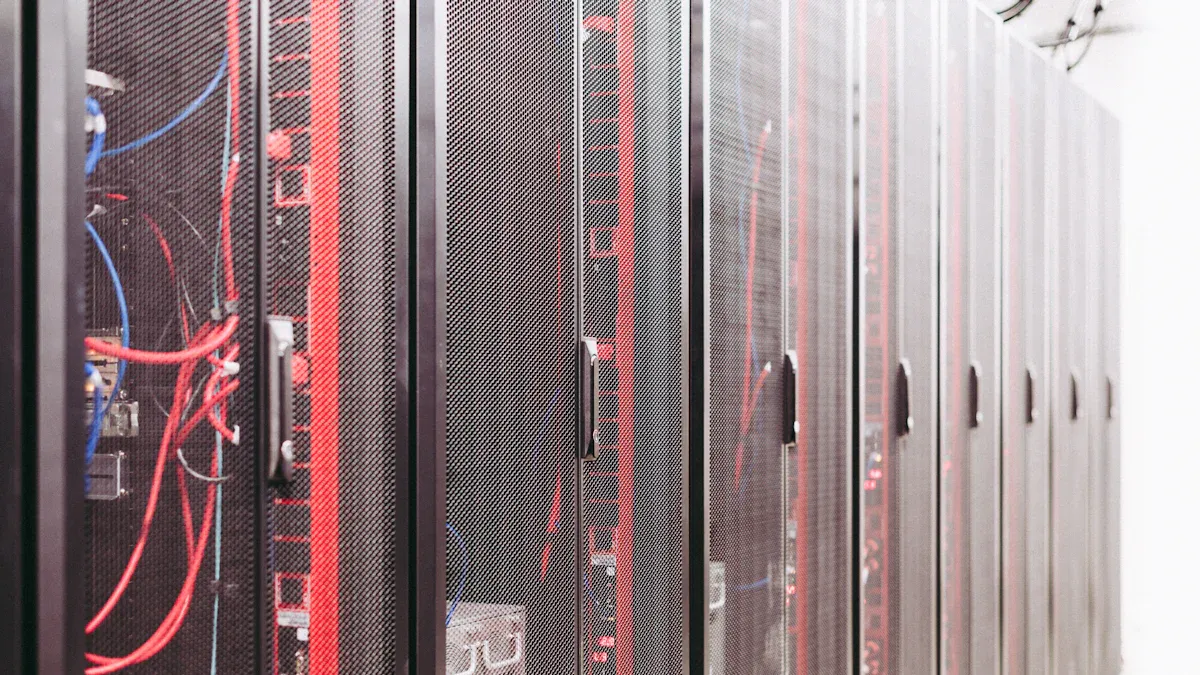

Practical Implementation for OM2 MPO Trunk Cable 40G Upgrades

Implementing 40G upgrades with existing OM2 fiber requires careful planning and execution. Data centers must assess their current infrastructure, select appropriate equipment, and follow best practices for fiber management. This ensures a successful and cost-effective transition.

Assessing Existing OM2 Infrastructure

A thorough evaluation of the current fiber plant forms the foundation of any successful upgrade. This step helps identify potential issues and ensures the infrastructure can support higher speeds.

Cable quality and age evaluation

Data center managers must first evaluate the quality and age of their existing OM2 cables. Older cables might show signs of physical wear, such as kinks, tight bends, or damaged jackets. These issues can degrade signal integrity. Technicians should visually inspect the cables for any damage. They should also review installation records to understand the cable’s history. High-quality, well-maintained OM2 fiber has a better chance of supporting 40G transmission.

Accurate length measurements

Accurate length measurements are critical for OM2 fiber. OM2 has specific distance limitations for 40G applications. Exceeding these limits can lead to signal loss and unreliable performance. Data centers must precisely measure the length of each fiber run intended for 40G. This ensures the link falls within the supported distance for 40GBASE-SR4 transceivers. Precise measurements also help in calculating the link loss budget accurately.

Selecting Compatible Equipment

Choosing the right hardware is essential for a seamless 40G upgrade. Equipment must be compatible with OM2 fiber and the desired speed.

40GBASE-SR4 transceiver specifications

Data centers must select 40GBASE-SR4 transceivers specifically designed for multimode fiber. These transceivers use parallel optics, sending four 10G signals over four fiber strands. They are optimized for short-reach applications, making them suitable for OM2 fiber. Managers should verify the transceiver’s specifications, including its power budget and supported distance over OM2. This ensures compatibility with the existing fiber infrastructure.

Network switch compatibility

Network switches must support the chosen 40GBASE-SR4 transceivers. This includes having compatible QSFP+ ports. Data centers should check the switch’s documentation for supported transceiver types and firmware requirements. Some switches may require firmware updates to recognize and operate 40G transceivers correctly. Ensuring switch compatibility prevents deployment issues and guarantees optimal performance.

Best Practices for MPO Management

Proper management of MPO connectors and cables is vital for maintaining signal integrity and reliability in 40G networks.

Connector cleaning and inspection

MPO connectors are crucial for high-performance fiber optic networks. Their cleanliness and optimal performance are paramount for reliable operation. Cleaning materials like lint-free wipes, swabs, compressed air, and isopropyl alcohol are suitable for thermoplastic MT ferrules. Cleaning tools and fixtures must accommodate the larger rectangular MT ferrules and their guide pins. MPO connectors have fiber ends that protrude 1.0 to 4.0 µm beyond the ferrule’s end face. Cleaning tools must account for this unique characteristic. Special attention is required for cleaning and inspecting guide pins and guide-pin holes. Contaminants here can cause insertion and return loss issues. For field inspection of guide pins and holes, an inexpensive 10X loupe is recommended. Rigorous cleaning and inspection procedures are essential for optimal MPO connector performance. This ensures reliability and efficiency in diverse network environments.

Proper cable routing and strain relief

Proper cable routing and strain relief prevent physical damage to the OM2 MPO Trunk Cable. Technicians should route cables to avoid sharp bends, kinks, and excessive pulling tension. Using cable management accessories, such as trays and ties, helps maintain organized pathways. Strain relief mechanisms protect connectors from stress. This ensures consistent optical performance and extends the lifespan of the cabling.

Planning for Future Scalability

Data center managers must always consider future growth when implementing any upgrade. Even when leveraging existing OM2 MPO Trunk Cable for 40G, strategic planning ensures the current investment supports future scalability. This approach helps avoid costly reworks and facilitates smoother transitions to even higher speeds.

Modular design considerations

Modular design is crucial for future-proofing data center infrastructure. MPO trunk cables inherently support this modularity. They offer a flexible and scalable cabling solution.

• Pre-terminated Assemblies: MPO trunk cables arrive pre-terminated. This allows for rapid deployment and easy reconfiguration. Technicians can quickly add or remove links as bandwidth demands change.
• Port Density: MPO connectors provide high port density. This maximizes the use of valuable rack space. It also simplifies cable management.
• Easy Upgrades: A modular MPO system allows for phased upgrades. Organizations can upgrade specific links to 40G as needed. They do not need to overhaul the entire network simultaneously. This approach minimizes disruption and manages costs effectively.
• Standardization: Adhering to industry standards for MPO cabling ensures interoperability. This simplifies future equipment integration.

💡 Tip: Design your MPO cabling infrastructure with spare capacity. This allows for future expansion without immediate additional cabling purchases.

Path to higher speeds (e.g., 100G, 400G)

While OM2 fiber effectively supports 40G over short distances, its limitations become more pronounced at 100G and 400G. These higher speeds typically require different fiber types.

• OM2 as a Stepping Stone: The 40G OM2 MPO upgrade serves as a cost-effective solution for immediate bandwidth needs. It extends the life of existing infrastructure. This allows data centers to defer larger investments in new fiber types.
• Future Fiber Types: For 100G and 400G, data centers will likely deploy OM4, OM5, or single-mode fiber (SMF). OM4 and OM5 offer higher modal bandwidth for multimode applications. SMF provides virtually unlimited bandwidth over longer distances.
• Coexistence Strategy: Data centers can implement a hybrid cabling strategy. They can use existing OM2 for short-reach 40G links. They can deploy new OM4/OM5 or SMF for longer runs or higher-speed requirements. The MPO connector system facilitates this coexistence. It allows for easy integration of different fiber types within the same patching infrastructure.
• Transceiver Evolution: Transceiver technology continues to advance. Future transceivers may offer even greater reach over existing fiber types. However, planning for new fiber types for 100G and 400G remains a prudent strategy. This ensures the infrastructure can meet future demands.

Real-World Scenarios and Use Cases for OM2 MPO Trunk Cables

Data centers can effectively deploy OM2 fiber for 40G upgrades in several practical scenarios. These applications leverage the fiber’s capabilities over short distances, providing cost-effective solutions. Organizations maximize their existing infrastructure investment.

Inter-Rack Connectivity

Connecting equipment within or between adjacent racks often involves short cable runs. OM2 fiber proves highly effective in these specific situations.

High-speed links between adjacent racks

Many data centers require high-speed connections between servers, switches, and storage devices located in adjacent racks. These links typically span less than 50 meters. OM2 fiber, when paired with 40GBASE-SR4 transceivers, reliably supports 40G data rates over these short distances. This allows for rapid data transfer between critical components. It avoids the expense of deploying new OM3 or OM4 fiber.

Server-to-storage connections

Modern storage area networks (SANs) and network-attached storage (NAS) systems demand significant bandwidth. Servers often connect directly to storage arrays within the same row or adjacent racks. These server-to-storage connections benefit from 40G speeds. OM2 fiber provides a viable and economical solution for these short-haul links. It ensures fast access to data for applications like virtualization and big data analytics.

Short-Distance Aggregation Links

Aggregation layers in data centers consolidate traffic from multiple sources. OM2 fiber can serve these links effectively over short spans.

Connecting access switches to distribution switches

Data center networks typically employ a hierarchical design. Access switches connect to distribution switches. These connections often occur within the same data hall or even the same row. The distances are usually short. OM2 fiber can handle 40G aggregation from access to distribution layers. This maintains network performance without requiring a complete fiber overhaul.

Core network segments within a single room

Some smaller data centers or specific zones within larger facilities have core network segments confined to a single room. These segments require high bandwidth for inter-switch communication. OM2 fiber can support 40G links for these core segments. This applies when the total link length remains within the specified limits for 40GBASE-SR4 transceivers. It offers a practical upgrade path.

Server to Top-of-Rack (ToR) Switching

Top-of-Rack (ToR) switching is a common architecture in modern data centers. OM2 fiber supports high-bandwidth uplinks in this setup.

High-bandwidth server uplinks

Servers require high-bandwidth uplinks to their respective ToR switches. These connections are typically very short, often just a few meters. OM2 fiber can provide 40G uplinks from servers to ToR switches. This ensures servers have sufficient bandwidth for demanding workloads. It supports efficient data flow from individual servers to the network.

Virtualization and cloud environments

Virtualization and cloud computing environments place heavy demands on network bandwidth. Virtual machines often migrate between physical servers. This requires fast network connectivity. OM2 MPO Trunk Cable can facilitate 40G links between servers and ToR switches in these environments. It supports the high-speed data movement necessary for dynamic virtualized infrastructures. This helps maintain application performance and responsiveness.

Addressing Potential Challenges and Mitigation Strategies for OM2 MPO Trunk Cables

High-speed data transmission over OM2 fiber faces challenges. Signal degradation and attenuation are primary concerns. Data centers must address these issues for reliable 40G performance.

Signal Degradation and Attenuation

Importance of cable quality

The quality of OM2 fiber significantly impacts 40G performance. High-quality cables have consistent core geometry and minimal manufacturing defects. These characteristics ensure better signal propagation. Poor quality or damaged cables introduce excessive attenuation. This leads to signal loss and unreliable connections. Regular inspection and adherence to industry standards for cable manufacturing are crucial.

Minimizing bends and stress

Physical handling directly affects fiber optic cable performance. Tight bends, kinks, and excessive pulling tension increase signal attenuation. These stresses can cause micro-bends or macro-bends in the fiber. Such bends allow light to escape the fiber core. Proper cable routing and management are essential. Technicians must ensure cables follow gentle curves. They should use appropriate cable trays and strain relief mechanisms. This prevents physical damage and maintains signal integrity.

Transceiver Compatibility Issues

Transceiver compatibility presents another common challenge during 40G upgrades. Different vendors’ equipment may not always work together seamlessly.

Vendor interoperability

Data centers often use equipment from multiple vendors. This can lead to interoperability issues with transceivers. A common problem occurs when an interface does not come up after connecting transceivers. Users might also see error messages like ‘Transceiver speed does not match the speed configured on the port’. Incompatibility can arise between non-Cisco transceivers, such as FS brand SFP-10G-SR, and Cisco adapters like CVR-QSFP-SFP10G. The Cisco transceiver compatibility matrix helps verify module support. For example, it distinguishes between M6PQ and M6PQ-E modules. To address these issues, administrators can enable service unsupported-transceiver. This allows the use of non-Cisco transceivers. They can also configure speed-group 10000 on 40G ports when downgrading to 10G. Defaulting the interface on both sides of the interconnect often resolves problems. Disabling auto-negotiation and manually specifying the speed, for example, speed 10000, also helps.

Firmware considerations

Network switch firmware plays a vital role in transceiver compatibility. Outdated or incompatible firmware can prevent switches from recognizing 40G transceivers. This leads to operational failures. Data center teams must ensure their network devices run the latest recommended firmware versions. They should consult vendor documentation for specific firmware requirements for 40G transceivers. Regular firmware updates help maintain compatibility and optimize performance.

Ensuring Proper Testing and Validation

Thorough testing and validation are critical steps after any 40G upgrade. These processes confirm link reliability and performance.

Optical power meter usage

An optical power meter measures the signal strength at various points along the fiber link. This tool helps verify the link loss budget. Technicians can identify excessive attenuation or faulty connections. They ensure the received power falls within the transceiver’s acceptable range. This confirms the optical link’s health.

Bit error rate testing (BERT)

Bit error rate testing (BERT) assesses the data integrity of the 40G link. BERT sends a known data pattern across the fiber. It then checks for errors at the receiving end. A low or zero bit error rate confirms reliable data transmission. This validation step ensures the link can carry data without corruption. It provides confidence in the 40G upgrade.

The Future Relevance of OM2 MPO Trunk Cables in Data Centers

Continued Relevance for Specific Applications

Legacy infrastructure optimization

Data centers continue to find significant value in their existing OM2 fiber installations. Organizations actively optimize legacy infrastructure by extending its operational life. This strategic approach avoids the substantial cost and disruption associated with a complete fiber plant replacement. OM2 fiber remains a practical and reliable choice for specific short-distance links. It effectively maximizes previous capital investments made in the cabling infrastructure.

Cost-sensitive deployments

OM2 fiber offers a highly economical solution for projects operating under tight budget constraints. Data centers can achieve essential 40G speeds without the need to invest in new, more expensive fiber types like OM3 or OM4. This makes OM2 an ideal choice for smaller facilities, specific departmental upgrades, or temporary deployments. It provides a cost-effective pathway to increased bandwidth in scenarios where link distances remain within the supported limits.

Integration with Newer Technologies

Coexistence with single-mode fiber

OM2 fiber can effectively coexist with single-mode fiber (SMF) within the same data center environment. Each fiber type serves distinct and complementary purposes. OM2 efficiently handles short-reach, high-bandwidth connections, typically within racks or between adjacent equipment. SMF, conversely, supports much longer distances and higher speeds, such as 100G or 400G, for backbone or inter-building links. This hybrid approach allows data centers to strategically optimize their entire cabling infrastructure.

Hybrid cabling solutions

Data centers frequently implement hybrid cabling solutions by combining OM2 with newer multimode or single-mode fibers. This strategy intelligently leverages the unique strengths of each fiber type. For instance, an OM2 MPO Trunk Cable can reliably connect adjacent racks or server-to-ToR switches. Meanwhile, newer fibers handle longer backbone links or future higher-speed requirements. This modular and flexible design effectively meets diverse bandwidth and distance requirements across the data center.

Industry Trends and Standards

Ongoing research and development

Ongoing research and development in optical technology may further enhance OM2’s capabilities and extend its utility. Innovations in transceiver design, such as improved signal processing and error correction techniques, could potentially extend its reach or application scope for higher speeds. These advancements might unlock new possibilities for older fiber types. The industry continuously seeks innovative ways to maximize the value of existing assets and infrastructure.

Standardization body updates

Standardization bodies like TIA and IEEE regularly update fiber specifications and deployment guidelines. These updates significantly influence how data centers deploy and utilize various fiber types, including OM2. Future revisions might provide clearer guidelines, new testing methodologies, or even new methods for effectively using OM2 in high-speed networks. Adherence to these evolving standards ensures continued interoperability, optimal performance, and long-term relevance for all fiber types.

---

OM2 MPO trunk cables present a viable and cost-effective solution for 40G data center upgrades. This applies especially to specific short-reach applications. Organizations can significantly extend their existing fiber infrastructure’s life. They achieve this by understanding technological enablers and planning implementation carefully. This approach delivers substantial savings. It also meets immediate bandwidth demands. Thus, it provides a smart, economical solution for many data center upgrade scenarios.

FAQ

What is the maximum distance for 40G over OM2 MPO trunk cables?

OM2 MPO trunk cables typically support 40GBASE-SR4 transmission up to 30 to 50 meters. This distance depends on the specific transceiver and overall link loss budget. Always measure link lengths accurately. This ensures reliable performance within the specified limits.

Why are MPO connectors important for OM2 40G upgrades?

MPO connectors are crucial for 40G upgrades. They provide high-density fiber connectivity. A single MPO connector manages multiple fiber strands. This supports the parallel optics required by 40GBASE-SR4 transceivers. MPO connectors also simplify multi-fiber management and installation.

What are 40GBASE-SR4 transceivers?

40GBASE-SR4 transceivers are optical modules. They transmit 40 Gigabit Ethernet over multimode fiber. These transceivers use four parallel lanes. Each lane carries 10 Gbps. They are specifically designed for short-reach applications. This makes them compatible with OM2 fiber.

How does using OM2 for 40G save costs compared to OM3/OM4?

Using OM2 for 40G saves costs by avoiding complete fiber plant replacement. It reduces the need for new OM3 or OM4 cables. This minimizes capital expenditure. It also lowers installation labor costs. Data centers maximize their existing infrastructure investment.

What testing should data centers perform after an OM2 40G upgrade?

Data centers should perform optical power meter measurements. This verifies signal strength. They should also conduct Bit Error Rate Testing (BERT). BERT confirms data integrity. These tests ensure the 40G link is reliable and performs optimally.

Is OM2 suitable for future speeds like 100G or 400G?

OM2 fiber is generally not suitable for 100G or 400G. Its limitations become more pronounced at these higher speeds. Data centers typically require OM4, OM5, or single-mode fiber for such future upgrades. OM2 serves as a cost-effective 40G stepping stone.

Can OM2 fiber reliably support 40G data rates?

Yes, OM2 fiber reliably supports 40G data rates. It works for short distances, typically up to 30-50 meters. This capability relies on modern 40GBASE-SR4 transceivers and parallel optics technology. Data centers can leverage existing OM2 infrastructure for these specific applications.
