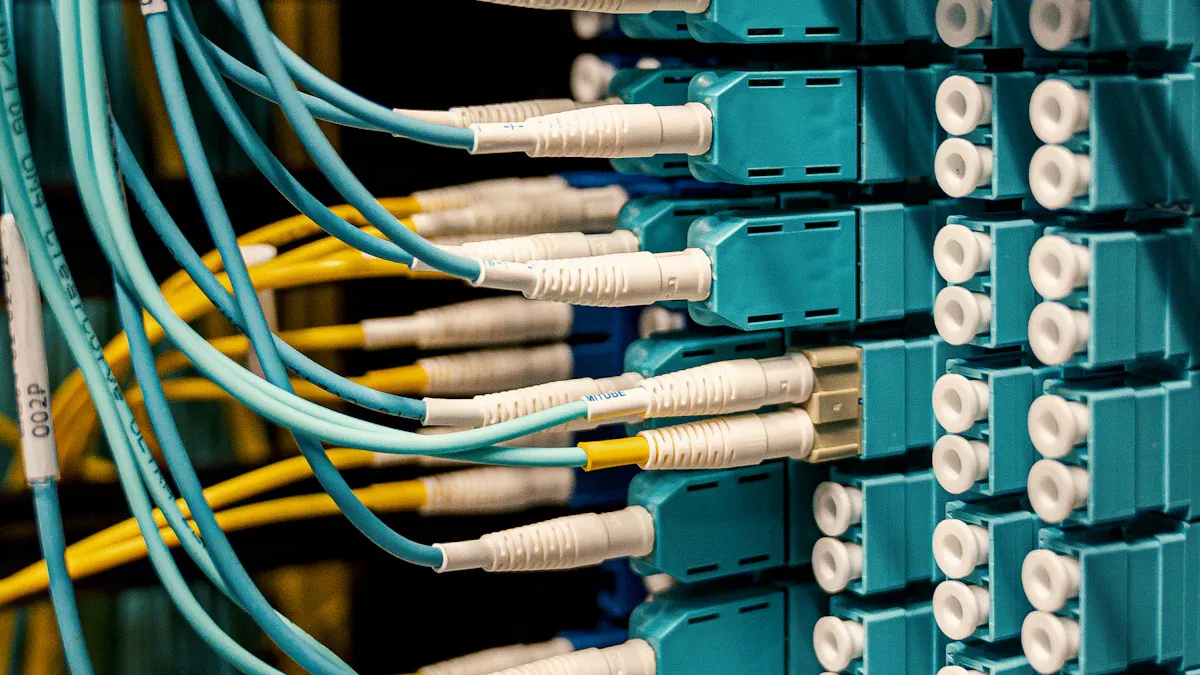

Network Optimization MTP/MPO Trunk or Breakout Cable The Right Choice

The optimal choice between MTP/MPO trunk and breakout cables hinges entirely on your specific network application. An MPO trunk cable is ideal for high-density backbone connections, providing efficient links across network infrastructure. Conversely, an MTP MPO Patch Cable, often configured as an MPO Harness Cable, excels in direct device connectivity, enabling flexible connections to individual ports. This fundamental difference guides effective network design and optimization.

Key Takeaways

• MTP/MPO trunk cables connect main network parts. They link large sections of a network together.
• MTP/MPO breakout cables connect many devices. They split one fast connection into several slower ones.
• Trunk cables help networks grow. They support very fast internet speeds like 40G and 100G.
• Breakout cables make device connections easy. They help use all parts of a network switch.
• Both cable types save time. They come ready to use, so installation is fast.
• These cables save space in data centers. They pack many fibers into small cables.
• Choose trunk cables for main network lines. Choose breakout cables for connecting many devices.
• Plan for future network needs. Pick cables that can handle more speed later.

Understanding MTP/MPO Trunk Cables for Network Backbones

MTP/MPO trunk cables form the backbone of modern high-performance networks. They provide the necessary infrastructure for rapid data transfer and efficient connectivity within data centers and enterprise environments. These cables are crucial for managing the increasing demands of network traffic.

What Defines an MTP/MPO Trunk Cable?

An MPO trunk cable is a multi-fiber assembly. It consolidates numerous optical fibers into a single cable jacket. This design allows for high-density connections.

High-Density Fiber Count and Design

MPO trunk cables feature a high fiber count, typically ranging from 8 to 144 fibers. Common configurations include MPO-8, MPO-12, MPO-16, and MPO-24. Their design often incorporates a round and mini-core cable structure. This structure helps eliminate bend sensitivity, ensuring signal integrity. Some designs also offer an optional pulling eye, which simplifies installation in various environments.

MTP/MPO Connector Technology Explained

MTP/MPO connectors are multi-fiber push-on connectors. They provide a quick and reliable connection for multiple fibers simultaneously. These connectors come in male (with pins) or female (without pins) types. The jacket color often indicates the fiber mode: yellow for single-mode fiber (SMF) and aqua for multimode fiber (MMF). Other colors like blue, violet, and green also exist for specific applications.

Polarity and Keying for MPO Trunk Systems

Polarity defines the mapping of optical signals from one end of the cable to the other. MPO trunk systems use specific polarity types, such as Type A, Type B, and Type C. Keying ensures correct mating of the connectors, preventing incorrect fiber alignment and maintaining signal integrity.

Key Characteristics of MPO Trunk Cables

MPO trunk cables possess distinct characteristics that make them suitable for backbone applications.

Pre-terminated Assemblies for Rapid Deployment

Manufacturers pre-terminate MPO trunk cables in a factory setting. This pre-termination significantly reduces installation time. It eliminates the need for field termination, which can be complex and time-consuming. This plug-and-play design ensures rapid deployment.

Single Jacket Construction for Space Efficiency

These cables feature a single jacket construction. This robust design houses multiple optical fibers, saving considerable space in high-density cabling networks. It reduces the need for numerous individual patch cords, contributing to a cleaner and more organized cabling infrastructure.

Fiber Types and Counts in MPO Trunk Solutions

MPO trunk solutions offer various fiber types and counts. They are available in single-mode (9/125um) for long-distance transmission and multimode (50 or 62.5/125um) for shorter, high-density data center connections. Fiber counts range from 12 to 144 fibers, allowing for diverse network requirements.

Benefits of MTP/MPO Trunk Cables

Deploying MTP/MPO trunk cables offers several advantages for network infrastructure.

Accelerated Deployment and Installation

The pre-terminated, plug-and-play nature of these cables accelerates deployment. Installers can quickly connect equipment, saving valuable time. This simple connector design ensures uncomplicated installation and quick implementation of network solutions.

Enhanced Space Management in Data Centers

MPO trunk cables contribute to significant space savings. Their high-density design efficiently manages large amounts of fiber. This maximizes rack space and improves airflow within data centers, preventing performance fluctuations.

Minimized Installation Errors and Rework

Factory-terminated assemblies minimize installation errors. They ensure consistent quality and reliability. This reduces the potential for rework and simplifies troubleshooting, leading to a more stable network.

Scalability for Future Network Growth with MPO Trunk

MPO trunk cables provide excellent scalability. They support state-of-the-art Ethernet technologies like 40G and 100G standards. They also accommodate emerging 400GBASE-SR8 implementations and even higher capacities. This ensures the network can adapt to increasing data traffic and future equipment upgrades. A regional cloud services provider successfully deployed 100G links and expanded to 400G as traffic evolved, demonstrating this capability.

Ideal Applications for MPO Trunk Cables

MPO trunk cables offer significant advantages across various high-demand networking environments. Their design and capabilities make them indispensable for modern infrastructure.

Data Center Backbone Cabling

Data centers heavily rely on MPO trunk cables for their backbone infrastructure. These cables are essential for increasing fiber network density. They consolidate multiple fiber linkages into a minimal physical size, simplifying network connections. This approach builds rapid backbone infrastructure. MPO trunk cables also provide scalability for growing bandwidth requirements. They ensure network accuracy, improve performance, and reduce energy consumption for high-speed data flow. Hyperscale data centers effectively manage thousands of servers using these cables, benefiting from their high fiber count and low insertion loss in dense networking environments.

Inter-Rack Connectivity Solutions

MPO trunk cables excel in inter-rack connectivity. They facilitate high-density connections, which is crucial for limited space within data centers. This leads to better organization and easier maintenance. The pre-terminated nature of these cables reduces installation time for terminations. This allows quick network deployment with less labor. Businesses can also support future upgrades and expansions without extensive rewiring. The compact design of MPO cables simplifies management and enhances the aesthetics of network installations between racks.

High-Speed Network Upgrades

Modern networks constantly demand higher speeds. MPO trunk cables significantly boost bandwidth, supporting high-speed networks like 40G and 100G Ethernet. They are specifically designed for 40G, 100G, and even 400G applications. These cables minimize signal loss, ensuring efficient data transmission over long distances. This is vital for network performance. Telecommunication providers deploy MPO trunk cables to enable high-speed, low-latency connectivity across extensive networks, especially with the growth of 5G and IoT. They significantly outperform standard fiber optic patch cords, which typically max out at 10Gbps.

Fiber Optic Distribution Areas

Fiber optic distribution areas benefit from the streamlined installation and simplified management offered by MPO trunk cables. Their pre-terminated solutions drastically reduce setup time and minimize installation errors. This leads to lower labor costs by cutting installation time and decreasing the need for skilled labor during terminations. MPO cables offer seamless integration with existing systems, ensuring compatibility across various network components. This makes managing complex fiber distribution points much more efficient and less prone to errors.

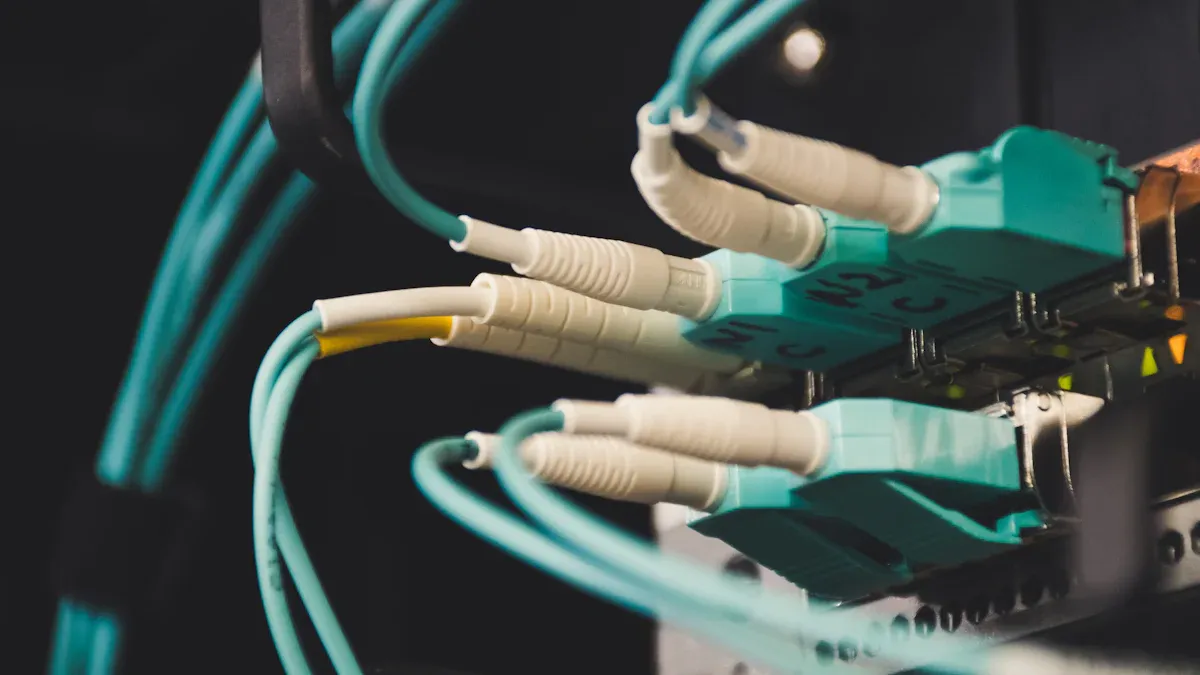

Exploring MTP/MPO Breakout Cables for Device Connectivity

MTP/MPO breakout cables offer a versatile solution for connecting individual devices within a network. They bridge the gap between high-density backbone cabling and specific equipment ports. These cables are essential for optimizing device connectivity and maximizing port utilization.

What is an MTP/MPO Breakout Cable?

An MTP/MPO breakout cable, also known as a fanout cable, features MTP/MPO connectors on one end and duplex connectors, such as LC, SN, or MDC, on the other. These cables facilitate ‘breakout’ applications. They enable a single high-speed MTP/MPO switch port to connect to multiple lower-speed duplex switch or server ports. This configuration maximizes switch port density and utilization, which reduces overall costs.

Multi-Fiber to Single-Fiber Conversion

Breakout cables perform a crucial multi-fiber to single-fiber conversion. They take the aggregated fibers from an MPO connector and separate them into individual fibers, each terminated with a standard connector. This allows high-bandwidth MPO ports to interface with devices requiring single-fiber connections.

Common Connector Types (LC, SC, ST)

The individual fibers on the breakout end typically terminate with common connector types. These include LC (Lucent Connector), SC (Standard Connector), and ST (Straight Tip) connectors. LC connectors are popular for their small form factor and high density, while SC and ST connectors offer robust and reliable connections for various applications.

Fan-Out Design for Flexible Connections

The fan-out design of these cables provides flexible connections. It allows network administrators to distribute the fibers from a single MPO port to multiple device ports. This design simplifies cabling and offers greater adaptability in network configurations.

Key Characteristics of Breakout Cables

Breakout cables possess distinct characteristics that make them highly effective for device connectivity.

Hybrid Cable Assemblies for Versatility

Breakout cables are hybrid cable assemblies. They combine multi-fiber MPO connectors with single-fiber duplex connectors. This hybrid nature offers significant versatility, allowing seamless integration between different types of network equipment.

Individual Fiber Protection and Routing

Each individual fiber within a breakout cable receives protection and careful routing. This design ensures signal integrity and durability for each connection. It also simplifies the management of individual fiber paths to specific devices.

Custom Lengths and Configurations

Manufacturers offer breakout cables in custom lengths and configurations. This customization allows for precise cable management and optimized routing within racks and cabinets. It ensures a tailored fit for specific network layouts.

Benefits of MTP/MPO Breakout Cables

Deploying MTP/MPO breakout cables offers several advantages for network infrastructure.

Direct Device Connectivity and Port Utilization

Breakout cables enable direct device connectivity and maximize port utilization. They allow a single high-bandwidth port to connect to multiple lower-bandwidth ports. This reduces cable clutter and enhances organization in high-density environments.

Flexibility in Port Assignment and Management

These cables offer flexibility in port assignment and management. They allow for conversion between different bandwidths, accommodating various network needs. This adaptability simplifies network changes and upgrades.

Cost-Effective for Specific Connection Needs

Breakout cables prove cost-effective for specific connection needs. Their modular design simplifies installation and deployment, which reduces management costs. Mass production and simplified management contribute to lower manufacturing and operational costs.

Simplified Troubleshooting at the Device Level

Fewer connection points lead to reduced signal loss and enhanced link stability due to high-quality materials. This simplifies troubleshooting at the device level. The modular design also minimizes potential points of failure, improving network reliability.

Ideal Applications for Breakout Cables

Breakout cables serve critical functions in various network scenarios. They provide flexible and efficient connectivity solutions for diverse equipment. These cables optimize port utilization and simplify network management.

Connecting Switches to Servers

Breakout cables are essential for connecting switches to servers. They allow network administrators to utilize a single high-speed parallel optic switch port. This port then supports multiple lower-speed duplex switches or servers. For example, a 40G QSFP+ port on a switch can connect to four 10G SFP+ server ports using a breakout cable. This configuration maximizes the efficiency of high-density switch ports. It also reduces the number of cables required.

Patch Panel to Active Equipment Links

Breakout cables provide effective links from patch panels to active equipment. They connect the MPO ports on a fiber optic patch panel to the individual LC, SC, or ST ports on active network devices. This includes switches, routers, and servers. This method simplifies cable management within racks and cabinets. It also offers a clean and organized approach to connecting network infrastructure.

Top-of-Rack Architectures

Top-of-Rack (ToR) architectures greatly benefit from breakout cables. In a ToR setup, a switch sits at the top of a server rack. It connects directly to all servers within that rack. Breakout cables convert high-speed transmission rates to lower ones. For instance, they convert 40G to 10G connections. This allows a ToR switch with 40G MPO uplinks to connect efficiently to servers with 10G SFP+ ports. This reduces cable clutter and simplifies the cabling within the rack.

Legacy Equipment Integration

Breakout cables play a vital role in integrating legacy equipment into modern networks. Many older devices use 1G or 10G connections with LC or SC connectors. Newer network infrastructure often uses MPO ports for higher speeds. Breakout cables bridge this gap. They allow multiple 1G or 10G sources to transmit through a single MTP® connector. This facilitates upward conversion, consolidating several lower-speed connections into one MPO link. This approach helps reduce cable clutter and extends the lifespan of existing hardware.

MTP/MPO Trunk vs. Breakout Cables: A Direct Comparison

MTP/MPO trunk and breakout cables exhibit fundamental differences in their design and construction. These distinctions directly influence their suitability for various network roles.

Design and Construction Differences

Connectorization Philosophy

MTP/MPO trunk cables typically feature MTP/MPO connectors on both ends. These connectors can be 8-, 12-, 16-, 24-, or 32-fiber types. They establish permanent links within a structured cabling environment. Conversely, MTP/MPO breakout cables, also known as fanout cables, have an MTP/MPO connector on one end. The other end terminates with multiple duplex connectors, such as LC, SN, or MDC. This design allows a single high-speed MTP/MPO switch port to connect to several lower-speed duplex switch or server ports.

Feature	MTP/MPO Trunk Cables	MTP/MPO Breakout Cables
Connector Type Side 1	MPO/MTP Connectors	MPO/MTP Connectors
Connector Type Side 2	Same as Side 1	Multiple duplex connectors
Typical Configuration	Permanent Link	Channel or Equipment Connection
Application Type	Parallel Optics OR Duplex	Breakout (Parallel Optics TO Duplex)

Cable Jacket and Protection

MTP/MPO trunk cables utilize a single jacket construction. This robust jacket encloses multiple optical fibers, providing protection and maintaining a compact form factor. This design saves considerable space in high-density networks. Breakout cables, however, feature individual fiber protection and routing for each fanned-out strand. This ensures the integrity of each separate connection.

Fiber Routing and Management

Trunk cables consolidate numerous fibers into one assembly. This simplifies fiber routing and management across longer distances or between distribution frames. Breakout cables, with their fan-out design, require managing individual fiber paths to specific devices. This offers flexibility but demands careful organization at the device connection point.

Application and Use Case Contrasts

The distinct designs of MTP/MPO trunk and breakout cables lead to contrasting application and use cases within a network.

Backbone vs. Edge Connectivity

MTP/MPO trunk cables are ideal for direct high-speed trunk links. They support 40G, 100G, 400G, and 800G connections between data centers, distribution frames, and cabinets. They facilitate high-speed parallel transmission, simplify cabling, and optimize space utilization. Breakout cables are chosen when a network needs to split high-speed ports into multiple lower-speed ports. This allows connecting various servers or storage devices, enhancing port utilization. They offer flexible access for different device requirements.

Feature	MTP/MPO Trunk Cables	MTP/MPO Breakout Cables
Typical Applications	40G, 100G, 400G, 800G backbone direct connections	4x10G, 4x25G, 4x50G, 4x100G, 8x100G device breakout connectivity
Main Purpose	Direct trunk connections between equipment or distribution frames	High-density port breakout, splitting high-speed ports into multiple lower-speed ports

Port Density Requirements

MTP/MPO trunk cables maximize the use of high-density switch ports by consolidating many fibers into a single connection. This is crucial for core and distribution layers. Breakout cables, conversely, allow a single high-speed port to serve multiple lower-speed devices. This optimizes switch port usage and prevents stranded ports, which impacts the operational budget.

Network Layer Focus

Trunk cables primarily focus on the core and distribution layers of a network. They establish permanent backbone connections in spine-leaf topologies, reducing pathway congestion and improving airflow. Breakout cables focus on the access or edge layers. They facilitate speed transitions between different equipment generations, for example, 400G to 100G breakouts. This is crucial for AI/ML clusters and enables oversubscription ratios.

Performance and Management Implications

The choice between MTP/MPO trunk and breakout cables also carries significant implications for network performance and ongoing management.

Insertion Loss Characteristics

MTP/MPO trunk cables generally exhibit lower insertion loss compared to breakout cables. This is a critical factor for maintaining signal integrity, especially over extended distances in data center environments. Lower insertion loss ensures stronger signals and better network performance. For instance, MTP trunk cables typically have an insertion loss range of 0.1dB to 0.35dB, while MPO trunk cables range from 0.3dB to 0.75dB. Each MTP/MPO connector contributes 0.25-0.50 dB loss per mating interface.

Cable Type	Connector Type	Insertion Loss Range
MTP/MPO Trunk Cable	MTP	0.1dB to 0.35dB
MTP/MPO Trunk Cable	MPO	0.3dB to 0.75dB
100G Networks	N/A	< 0.35 per connector
12 Fiber	N/A	≤ 0.35 (elite ≤ 0.15)
24 Fiber	N/A	≤ 0.35 per row

Installation Time and Complexity

Both MTP/MPO solutions significantly reduce installation costs. They eliminate on-site fiber termination, saving labor time and expense. MTP/MPO trunk cables, being pre-terminated and plug-and-play, offer rapid deployment. Breakout cables also simplify installation by providing pre-assembled fan-outs, though managing the individual duplex connections at the device end requires careful attention.

Maintenance and Troubleshooting

Long-term maintenance is generally lower for MTP/MPO systems due to their robust design and factory termination. This reduces connection failures. MTP/MPO trunk cables replace many individual patch cords, reducing clutter and simplifying cable management. Breakout cables simplify troubleshooting at the device level. Their modular design minimizes potential points of failure, improving network reliability. Both cable types simplify adding new devices. They enhance network flexibility and scalability, suitable for future network speed upgrades.

Cost Considerations for MPO Trunk and Breakout

Network infrastructure decisions always involve careful financial planning. The choice between MTP/MPO trunk and breakout cables significantly impacts both initial capital expenditure and long-term operational costs.

Initial Purchase Price

The initial purchase price for MTP/MPO cabling solutions often reflects their advanced technology and factory pre-termination. MTP/MPO connectors, due to their precision engineering and multi-fiber design, typically have a higher upfront cost compared to traditional single-fiber connectors. This higher initial investment covers the specialized manufacturing processes and quality control required for these high-performance components.

Aspect	MTP/MPO Connectors
Initial Cost	Higher
Long-term TCO	Lower (at scale)

This table illustrates that while the initial outlay for MTP/MPO connectors is higher, their long-term total cost of ownership (TCO) can be lower, especially when deployed at scale.

Installation Labor Costs

Both MTP/MPO trunk and breakout cables offer substantial savings in installation labor. Their pre-terminated, plug-and-play nature eliminates the need for time-consuming and labor-intensive field termination. This significantly reduces the hours technicians spend on-site, leading to lower labor expenses. Installers can deploy these cables quickly and efficiently, minimizing project timelines and associated costs. The simplified installation process also reduces the need for highly specialized on-site fiber optic technicians, further contributing to cost savings.

Long-Term Scalability Expenses

MPO breakout cables offer significant cost efficiency through their intelligent design and simplified installation. This design reduces both labor and material expenses during deployment. Furthermore, their ability to support future network expansion without requiring substantial additional investment enhances their long-term cost-effectiveness. As networks evolve and bandwidth demands increase, these cables allow for seamless upgrades, protecting initial investments. Both MTP/MPO trunk and breakout solutions contribute to a lower total cost of ownership at scale. They provide a robust, flexible, and future-proof cabling infrastructure that adapts to changing network requirements without frequent, costly overhauls. This strategic investment ensures the network remains agile and capable of supporting future growth.

Making the Right Choice: A Decision Framework for MTP/MPO Cabling

Choosing the right MTP/MPO cabling solution requires a systematic approach. Network professionals must carefully evaluate current demands, anticipate future growth, and consider financial and operational constraints. This framework guides decision-makers through the critical factors for optimal MTP/MPO cable selection.

Assess Your Current Network Needs

Understanding the existing network infrastructure forms the foundation for any cabling decision. This assessment ensures the chosen MTP/MPO solution integrates seamlessly and performs effectively.

Existing Infrastructure Analysis

Network professionals must accurately determine the distance between connected equipment. This prevents ordering cables that are too short or excessively long, which can lead to management difficulties or damage. They identify the required number and type of fiber connectors for both ends of the assembly. This includes considering multi-fiber connectors like MPO/MTP for trunk cables and parallel optics, along with polarity and pinning requirements. For breakout cables, professionals specify the fanout length and whether staggered connectors are needed on one or both ends. This ensures organized installation and easy port connection. They also determine if pulling eyes are necessary for pre-terminated assemblies installed over long distances. Pulling eyes protect cables and connectors during installation by distributing tension and minimizing twisting.

Bandwidth Requirements

MTP fiber cables are crucial for high-density networks. They maximize bandwidth and support high-speed data transmission necessary for 40G, 100G, and beyond applications. MTP/MPO patch cords support high-speed data transmission, making them ideal for applications requiring high bandwidth, such as 10G, 40G, 100G, 200G, 400G, and 800G networks.

Different MTP/MPO fiber counts cater to specific bandwidth needs:

• MTP-8 / MPO-8: This configuration is suitable for entry-level or medium-bandwidth applications like small data centers. It supports typical 40G and 100G connections. Eight-fiber configurations can achieve full 40G/100G capability.
• MTP-12 / MPO-12: This is the most popular choice for data centers. It suits applications from 10G to 100G. Twelve-fiber configurations are widely deployed, compatible with existing infrastructure, and can support various applications.
• MTP-16 / MPO-16: This configuration supports high bandwidth requirements such as 400G-SR8 and 800G-DR8. Sixteen-fiber configurations target 400G and 800G deployments using QSFP-DD and OSFP form factors. They require 8 lanes at 50Gbps or 100Gbps per lane, necessitating 16 total fibers.
• MTP-24/MPO-24: This is the highest density option. It supports higher data rates and bandwidth for larger-scale cabling needs. Twenty-four-fiber configurations support older 100GBASE-SR10 transceivers, though largely superseded.

Device Interconnection Points

Identifying all device interconnection points is crucial. This includes servers, switches, storage arrays, and patch panels. Each point dictates the type and number of connectors required. Understanding the physical layout of these points helps determine cable lengths and routing strategies.

Consider Future Scalability and Growth

A forward-thinking approach to cabling ensures the network can adapt to increasing demands without costly overhauls. Scalability and flexibility are paramount for long-term network health.

Anticipated Data Traffic Increase

Network professionals must adopt a structured cabling approach. This provides an organized, standardized physical layer design, making the system easy to manage, troubleshoot, and scale. Its modularity allows for adding new racks or clusters without network disruption. Prioritizing cable management is essential for performance and reliability in high-density environments. Proper management prevents airflow blockage, overheating, equipment failure, and simplifies moves, adds, and changes (MACs). Professionals utilize high-capacity cable managers, overhead pathways, and proper labeling.

They also plan for future speed migrations. They select cabling solutions with clear and cost-effective upgrade paths for speeds like 800G, 1.6T, and beyond. High-quality, high-fiber-count MPO/MTP backbones and modular patch panels allow adaptation to new transceiver technologies by swapping cassettes and patch cords instead of replacing the entire trunk infrastructure. Testing and certifying every connection is crucial for high-performance networks. This ensures every link meets performance standards, identifies and resolves issues like dirty connectors or faulty terminations, and prevents performance degradation.

High fiber count reduces the physical space needed for connections by consolidating multiple duplex connectors into one. Rapid deployment with pre-terminated MPO/MTP trunk cables enables quick plug-and-play installation, speeding up deployment and scaling. This offers a clear upgrade path from 40G/100G to 400G/800G and beyond, protecting initial investments. Reduced cable congestion with fewer, more compact cables improves airflow and simplifies cable management, which is vital for cooling high-power racks. Very Small Form Factor (VSFF) Connectors (CS, SN, MDC) address increasing port densities by offering a smaller footprint than traditional LC connectors. This allows more connections in the same rack space. This is crucial for breaking out high-speed transceivers (e.g., QSFP-DD, OSFP) into multiple lower-speed channels. Armored fiber optic cables provide an extra layer of protection with a built-in metal tube. This makes them more resilient to physical stress and ensures network reliability in harsh data center environments.

Future Equipment Upgrades

MTP/MPO cabling systems offer the flexibility and performance needed for evolving network requirements towards 800G and beyond. Features like recyclable materials, LSZH jackets, intelligent monitoring for fault detection, and modular designs for easy upgrades without full system replacement contribute to future-proofing. Strategic implications for procurement include prioritizing modular, pre-tested, and standards-compliant MPO/MTP systems. Professionals proactively plan infrastructure upgrades to accommodate next-generation bandwidth. High-bandwidth MPO/MTP systems are essential for 400G and 800G data transmission. They consolidate multiple high-speed links into a single connector to reduce congestion and improve airflow.

Modularity and Flexibility

Modular and reconfigurable systems allow for easy upgrades and reconfiguration. This enables quick capacity expansion without replacing existing cables. Polarity management standardization, by adopting standardized Type A/B/C polarity solutions, prevents errors in high-speed links. Sustainable and energy-efficient cabling designs focus on recyclable jackets, low-smoke zero halogen (LSZH) materials, and energy-efficient connectors. Intelligent monitoring and fiber identification solutions integrate monitoring capabilities to identify faulty fibers, track usage, and maintain uptime. Professionals use MTP Elite connectors for minimal insertion loss and maximum reliability. They ensure Type A/B/C compliance to prevent misalignment. They match OM3/OM4/OM5 multimode or single-mode fibers based on network design. They verify Insertion Loss (IL)/Return Loss (RL), end-face quality, and polarity before deployment.

Evaluate Budget and Resource Constraints

Financial considerations and available resources significantly influence the final cabling decision. Balancing performance with cost-effectiveness is key.

Capital Expenditure for Cabling

Network professionals consider cost-effective options that still meet the required performance standards. They balance performance requirements with budget constraints. The selection of fiber count for MTP/MPO cables involves a trade-off between initial capital outlay and future operational flexibility and upgrade expenses. Insufficient provisioning leads to premature reinvestment, while excessive provisioning ties up capital in unused capacity. The goal is to find an optimal balance based on growth projections and technology adoption.

A financial services firm implemented a hybrid cabling strategy across 120 racks. They utilized 48-fiber MTP-to-MTP trunk cables in the backbone and 24-fiber breakout assemblies at each rack. This setup met immediate 25G storage network needs and provided capacity for future 100G server connectivity. The structured cabling cost $78,000, which was $13,000 more than a point-to-point approach ($65,000). However, this premium was justified by avoiding an estimated $120,000-$150,000 in future recabling expenses. For organizations primarily operating with 10G infrastructure, MTP-to-LC breakout cables offer optimal flexibility. This allows for a gradual transition to higher speeds without requiring a complete replacement of the existing infrastructure.

Installation Expertise Availability

The pre-terminated nature of MTP/MPO cables significantly reduces the need for highly specialized on-site fiber optic technicians. This lowers labor costs and simplifies deployment, even for teams with less fiber termination experience.

Operational Expenditure for Maintenance

Long-term operational costs, particularly for maintenance, also factor into the decision. MTP/MPO systems, due to their factory termination and robust design, generally require less frequent maintenance compared to traditional field-terminated solutions.

Cable Type	Installation Complexity	Maintenance Frequency
Trunk	Low	Low
Breakout/Fanout	Medium	Medium

This table illustrates that trunk cables typically offer lower maintenance frequency due to their simpler, consolidated structure. Breakout cables, while still efficient, involve more individual connections at the device end, potentially leading to slightly higher maintenance frequency.

Network Architecture and Topology

Network architecture and topology significantly influence the decision-making process for MTP/MPO cabling. The chosen design dictates the type, density, and configuration of fiber optic infrastructure.

Spine-Leaf vs. Traditional Three-Tier

The demand for higher speeds necessitates a migration from duplex links to parallel link options. This significantly affects cabling choices. Traditional three-tier architectures, with their core, distribution, and access layers, often use more point-to-point cabling. Spine-leaf architectures, common in modern data centers, prioritize high-speed, low-latency connections between all switches. This design benefits greatly from MTP/MPO trunk cables. These cables consolidate multiple fibers, simplifying the high-density interconnections required between spine and leaf switches.

Determining the desired capacity of the data center in the short-term future is crucial for forecasting and selecting appropriate cabling. Pre-terminated MPO-based fiber cabling systems offer quicker utilization and configuration flexibility. This aligns with the network’s direction and desired performance. Multimode fiber is the primary choice for enterprise data centers. The specific type of multimode fiber impacts the scale and scope of the data center as speeds increase. Every decision regarding implementing parallel links affects the structure and space of cabling. This emphasizes the need for thorough analysis before making additions.

Row-Based vs. Zone-Based Cabling

Cabling strategies like row-based and zone-based also impact MTP/MPO selection. Row-based cabling typically runs cables directly between racks in a row. Zone-based cabling uses a centralized distribution area within a zone to connect multiple racks. Both strategies benefit from the high-density and pre-terminated nature of MTP/MPO solutions.

Several factors guide the choice of MTP/MPO cabling within these topologies:

• Core Count: The number of fiber cores, such as 12-core for high-density applications, determines network bandwidth capacity. Network designers evaluate current and future bandwidth needs.
• Type of Fiber: Single-mode fibers are for long-distance, low-loss transmissions, often in campus networks. Multimode fibers offer higher bandwidth over shorter distances, ideal for data centers. The purpose and transmission range dictate the choice.
• Connector Configuration: Different configurations exist, including MTP/MPO-8, MPO-12, and MPO-24. Each supports different fiber counts. Compatibility with equipment is essential to prevent connectivity issues.
• Length and Routing: Cable length should be chosen based on distances between points in a data center and connection methods, either direct or through intermediate distribution frames (IDFs). This reduces clutter and prevents signal degradation.
• Fiber Counts and Types: MPO cables typically range from 8 to 144 fibers. MPO-12 and MPO-24 are common. They cater to different applications based on data transmission and network architecture.
• Scalability and Flexibility: MPO systems support dynamic and growing network architectures. They allow expansion without major infrastructure changes. This enables easy adjustment of network capacities and rapid incorporation of new technologies.

Virtualization and Cloud Integration

The expansion of hyperscale and enterprise data centers drives the need for robust, high-density cabling infrastructures. Organizations migrate to cloud platforms and deploy advanced analytics, AI, and IoT solutions. MPO/MTP assemblies are crucial for managing multiple fibers within a single connector. They reduce installation time, optimize space, and ensure future scalability. The shift towards virtualization and software-defined networking further augments the need for flexible and high-performance cabling solutions. This solidifies the market’s growth prospects for MPO/MTP cabling.

MPO/MTP Trunk Cables are dominant in large-scale data centers and enterprise networks. Their high-density, pre-terminated nature enables rapid deployment, reduces installation errors, and provides seamless scalability. The increasing adoption of cloud computing, virtualization, and big data analytics significantly boosts the demand for these trunk cables. They are essential for supporting high-bandwidth applications and minimizing network downtime.

Best Practices for Deployment

Implementing MTP/MPO cabling solutions requires adherence to best practices. This ensures optimal performance, reliability, and future scalability of the network infrastructure.

Proper Planning and Design

Strategic scalability planning is crucial. Network designers plan MPO trunk infrastructure for future bandwidth needs. They consider low-loss connectors, appropriate fiber counts (e.g., 12-fiber, 24-fiber, or 48-fiber options), and correct polarity. Leveraging modular MPO trunk cassettes and panels offers space efficiency, rapid plug-and-play deployment, and support for high-speed Ethernet.

Precision installation is crucial for optimal performance. It prevents signal loss and ensures network reliability. This includes proper cable routing and management to protect physical integrity. Installers avoid tight bends, twists, or excessive pulling. They adhere to manufacturer’s minimum bend radius specifications. Utilizing cable trays and raceways is recommended for organized pathways and protection.

Adherence to Industry Standards

MPO connectors adhere to industry standards like IEC 61754-7 and TIA-604-5 (FOCIS 5). MTP connectors, as enhanced MPOs, exceed these standards for superior performance. The IEC defines the standard IEC-61754-7 for MPO connectors. The TIA has established the TIA-604-5 standard, also known as the Fiber Optic Connector Intermateability Standard (FOCSI) 5. MTP® connectors, as an advanced version of MPO, comply with strict industry standards. This ensures compatibility and reliability.

Adopting emerging standards is also important. Network professionals stay current with industry standards to prepare networks for higher speed Ethernet, such as 800G-DR8 and 800G-SR8. These often use MPO/MTP 16 connectors. They consider next-generation MPO connectors that focus on low insertion loss, advanced alignment systems, and high-density multi-fiber connections. Ensuring vendor interoperability guarantees compatibility across equipment from different manufacturers. Utilizing standardized MPO trunk components provides flexibility. Adhering to standards like TIA-568, IEC 61754-7, and ISO/IEC 11801 ensures uniform performance, global compatibility, and scalability.

Essential MPO Trunk Connector Cleaning Protocols are fundamental for reliable fiber optic performance. Contamination is a leading cause of fiber failures. Inspection and cleaning tools are critical. A step-by-step guide for cleaning MPO connectors uses specific tools like mechanical cleaners and fiber microscopes.

Ensuring Secure MPO Trunk Connection Practices is non-negotiable to prevent signal interruptions. This involves verifying full seating and latching of MPO connectors. It also implements techniques to prevent accidental disconnections, such as proper labeling.

Comprehensive Testing and Validation is crucial. Thorough testing, including end-to-end link loss testing, ensures network reliability and performance. It identifies potential issues before they impact operations. It also confirms compliance with industry standards.

A critical rule for MPO connections is to always use one male connector and one female connector with one MPO adapter. Never connect a male to a male or a female to a female. This can lead to performance losses or damage to the connectors due to misaligned or clashing guide pins. Also, never dismantle an MPO connector. The pins are difficult to detach, and fibers might break.

Documentation and Labeling

Proper documentation and labeling are vital for managing MTP/MPO cabling systems. Network designers document polarity schemes during the design phase. This prevents costly deployment mistakes. They implement color-coding standards for MPO connectors. For example, aqua is for OM3/OM4, yellow for singlemode, and lime for OM5. They supplement manufacturer color codes with custom labels indicating polarity type. This prevents field technician errors. They ensure proper gender assignment across the architecture when designing patch panel layouts. Maintaining consistent gender configuration standards across the facility prevents improvisation by field technicians.

---

The selection between MTP/MPO trunk and breakout cables fundamentally depends on specific network application requirements. Both cable types are essential; they play complementary roles in achieving optimal network performance and efficiency. Strategic selection ensures a robust, scalable, and high-performing network infrastructure. This infrastructure meets current and future demands. Network professionals make informed decisions to optimize their cabling solutions.

FAQ

What is the primary distinction between MTP/MPO trunk and breakout cables?

Trunk cables connect high-density backbone links, often MPO to MPO. Breakout cables convert multi-fiber MPO to multiple single-fiber connectors (like LC). They connect high-density ports to individual devices.

For what applications do network professionals typically use MTP/MPO trunk cables?

Professionals use MTP/MPO trunk cables for data center backbone cabling, inter-rack connectivity, and high-speed network upgrades. They facilitate high-density, pre-terminated links between distribution frames or equipment.

How do MTP/MPO breakout cables enhance device connectivity?

Breakout cables allow a single high-speed MPO port to connect to multiple lower-speed devices. This maximizes port utilization on switches and servers. It simplifies cabling for individual equipment connections.

Do MTP/MPO cables help reduce installation time in data centers?

Yes, both trunk and breakout cables are pre-terminated. This eliminates on-site fiber termination. It significantly reduces installation time and labor costs. They offer a plug-and-play solution.

Can MTP/MPO cabling solutions support future network growth and upgrades?

Yes, MTP/MPO systems offer excellent scalability. They support current and future high-speed Ethernet standards (e.g., 40G, 100G, 400G, 800G). This allows networks to adapt to increasing bandwidth demands.

What common connector types appear on the fanned-out end of MTP/MPO breakout cables?

The fanned-out end of breakout cables typically features common single-fiber connectors. These include LC (Lucent Connector), SC (Standard Connector), and sometimes ST (Straight Tip) connectors. This depends on device requirements.

How do MTP/MPO cables contribute to better space management in data centers?

MTP/MPO cables consolidate many fibers into a single, compact assembly. This high-density design reduces cable bulk. It maximizes rack space and improves airflow. This leads to a more organized and efficient data center environment.
