Choosing the Right PDU: A Decision Framework for Data Center Managers

Introduction

As rack densities climb and uptime requirements tighten, choosing a PDU is no longer a simple hardware purchase. The right decision affects power visibility, phase balance, remote management, and the facility’s ability to support AI, HPC, and other high-load environments without raising outage risk. This article outlines a practical framework for evaluating PDU networking options, including power capacity, monitoring features, redundancy design, and integration with DCIM and operational workflows. By the end, data center managers will have a clearer way to match PDU capabilities to rack demands, resilience targets, and long-term expansion plans.

Why PDU Networking Selection Matters for Data Center Capacity

The strategic role of power distribution in modern data centers extends far beyond simple connectivity. As high-performance computing (HPC) and artificial intelligence workloads push facility boundaries, the methodology behind selecting power infrastructure directly dictates operational capacity and resilience.

Historically, facilities treated power strips as passive commodities. Today, intelligent power distribution architecture serves as the foundation for Data Center Infrastructure Management (DCIM) telemetry, enabling operators to maximize computational yield while mitigating the catastrophic risks associated with localized power failures.

Power architecture, rack density, and uptime targets

Power architecture and rack density are inextricably linked to a facility's uptime targets. Historically, a standard enterprise rack consumed between 5 kW and 7 kW of power. Today, AI and machine learning clusters routinely demand 30 kW to 50+ kW per rack, fundamentally altering the power distribution paradigm.

To meet stringent Uptime Institute Tier III or Tier IV standards—which require 99.982% and 99.995% availability, respectively—managers must implement robust pdu networking topologies. These networked environments provide granular, real-time visibility into power draw, ensuring that phase balancing is actively maintained and that localized trip events do not cascade into facility-wide outages.

Business risks of choosing the wrong PDU

The business risks of miscalculating power distribution needs are severe, manifesting as both immediate financial penalties and long-term operational constraints. Industry studies calculate the average cost of data center downtime at approximately $9,000 per minute. A single tripped breaker due to an overloaded, unmonitored phase can result in hundreds of thousands of dollars in lost revenue and service level agreement (SLA) breaches.

Furthermore, relying on inadequate infrastructure often leads to "stranded capacity." Without precise, outlet-level telemetric data, operators typically over-provision cooling and power by 20% to 30% as a safety margin. This practice wastes capital expenditure on unused infrastructure while artificially capping the data center's theoretical computational yield.

What Data Center Managers Should Define First

Before evaluating specific vendor models or networking features, data center managers must establish a rigorous baseline of their facility's current and projected requirements. Procuring a pdu power distribution unit without a comprehensive audit of the electrical, mechanical, and IT parameters inevitably leads to costly retrofits or compromised performance.

Electrical, mechanical, and environmental requirements

Electrical, mechanical, and environmental specifications form the absolute baseline for hardware selection. Managers must first define the input voltage—typically 120V or 208V in legacy North American sites, and 230V or 400V in modern or European facilities—alongside amperage requirements ranging from standard 16A feeds up to high-density 60A or 63A circuits.

Mechanically, the form factor must align precisely with cabinet dimensions. While standard server racks easily accommodate 0U vertical units, specialized telecommunications racks or shallow cabinets might necessitate 1U or 2U horizontal configurations.

Environmentally, the hardware must withstand elevated operating temperatures. With modern facilities adopting ASHRAE A3 guidelines to drastically reduce cooling costs, power distribution units must be certified to operate reliably in ambient temperatures reaching up to 60°C (140°F) without experiencing thermal derating.

Outlet count, phase type, and input needs

Outlet configuration and phase distribution require meticulous forecasting. A common operational failure in growing data centers is exhausting physical receptacles before maxing out the actual electrical circuit capacity.

Managers should audit their server power supplies to determine the exact mix of C13, C19, and the newer high-retention C39 combo outlets required. Best practices dictate universally applying a 20% to 25% surplus buffer to the initial outlet count to accommodate future hardware additions without requiring unit replacement.

Phase type is equally critical. Transitioning from single-phase to three-phase power directly at the rack level is increasingly standard for high-density environments. A three-phase 400V input can deliver up to 22 kW or even 34 kW per rack, significantly reducing the copper wiring footprint under the raised floor while naturally balancing the electrical load across the facility's upstream uninterruptible power supplies (UPS).

Redundancy, remote management, and integration priorities

Integration into the broader IT ecosystem dictates the networking requirements. To maintain concurrent maintainability, strict A/B feed redundancy is mandatory, ensuring that dual-corded servers remain online if one power path requires maintenance or experiences a fault.

From a networking perspective, minimizing IP address consumption is a major priority. Modern units allow operators to daisy-chain up to 32 devices on a single network switch port and IP address, drastically reducing top-of-rack network infrastructure costs.

Furthermore, the units must support industry-standard protocols such as SNMP v3, RESTful APIs, and Modbus TCP/IP. This ensures seamless telemetry ingestion into third-party DCIM dashboards, enabling automated alerting, capacity planning, and predictive maintenance algorithms.

How to Compare PDU Networking Options

The market offers a broad spectrum of power distribution technologies, ranging from passive power strips to highly sophisticated network appliances. Determining the optimal tier requires balancing capital expenditure against the operational necessity for telemetry, remote actuation, and cybersecurity.

Differences among basic, metered, monitored, and intelligent PDU

The hierarchical classification of power distribution hardware spans four primary categories. A Basic PDU provides unmanaged, reliable power distribution without any network connectivity, suitable for low-density, strictly localized environments. Metered units add local visual displays for phase load monitoring but still lack remote capabilities.

Monitored units introduce network connectivity for remote telemetry, allowing managers to track power usage effectiveness (PUE) from a central dashboard. Finally, an Intelligent PDU (often referred to as switched) combines outlet-level power monitoring with remote switching capabilities, enabling administrators to power-cycle locked servers without dispatching remote hands.

Visibility, control, and cybersecurity considerations

Visibility and control must be weighed heavily against cybersecurity implications. High-tier units offer billing-grade metering accuracy (often ±1%), which is crucial for colocation providers charging clients based on exact power consumption rather than flat spatial rates.

However, introducing networked appliances into the critical power chain creates a potential attack vector. Consequently, robust cybersecurity features are non-negotiable for modern deployments.

Enterprise-grade units must support secure boot mechanisms to prevent malicious firmware flashing, TLS 1.2 or 1.3 for encrypted network communications, and RADIUS or LDAP for centralized role-based access control (RBAC). Regular firmware update schedules from the manufacturer are critical to patching zero-day vulnerabilities in the embedded operating systems commonly used in these devices.

Single-phase vs three-phase and vertical vs horizontal designs

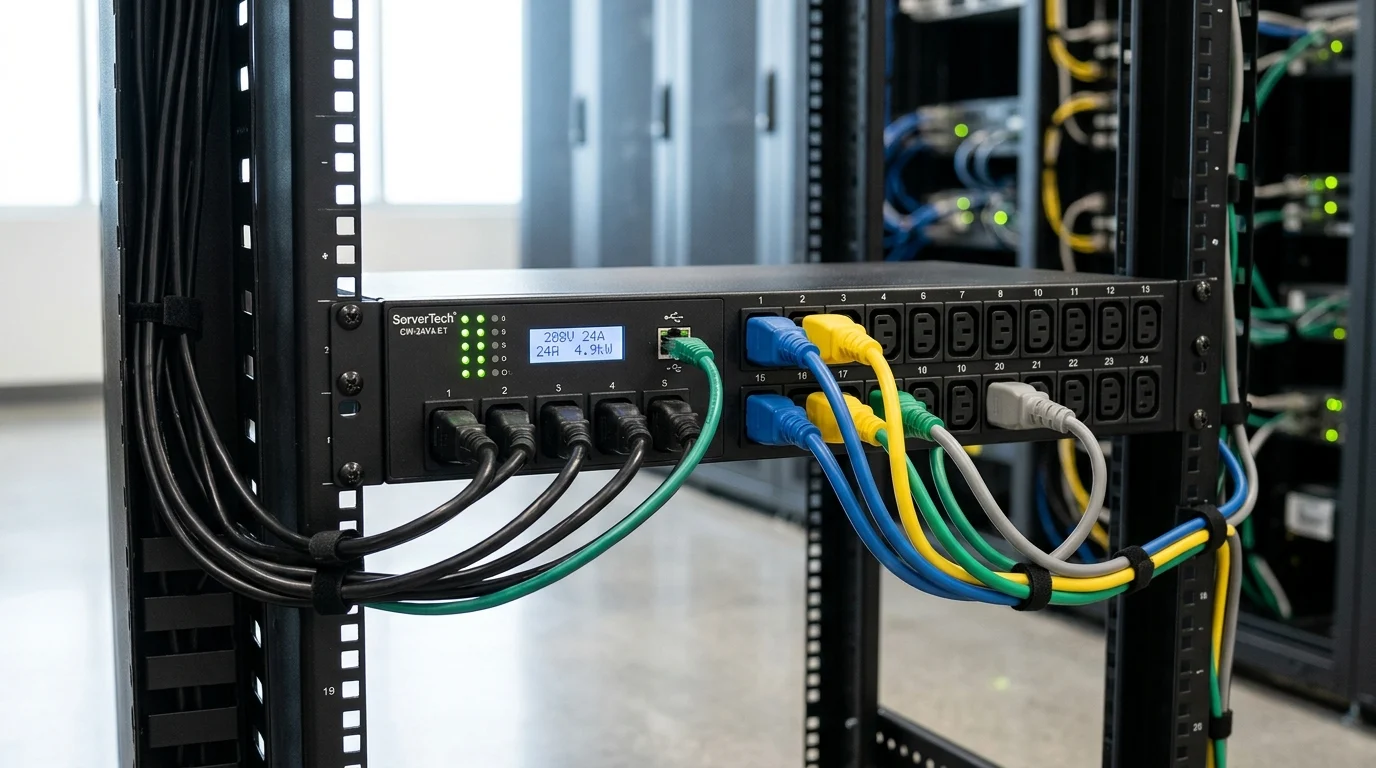

Physical design and phase architecture directly impact rack aerodynamics and cabling density. Horizontal units, typically occupying 1U or 2U of rack space, are limited by physical width and generally offer only 8 to 16 outlets. This restricts their use in high-density deployments but makes them ideal for shallow networking cabinets.

Conversely, 0U vertical designs mount in the rear channels of standard 42U to 52U server cabinets. This form factor provides up to 48 or more outlets without consuming valuable server rack units.

When paired with a three-phase Wye power architecture, vertical designs allow operators to distribute massive power loads evenly across the rack. This setup utilizes shorter, thinner device cables that do not obstruct the critical exhaust airflow from the rear of the server chassis, thereby improving overall cooling efficiency.

Compliance, Reliability, and Supply Chain Factors

Beyond technical specifications, procurement teams must evaluate the regulatory, logistical, and lifecycle aspects of power hardware. A technically superior unit is useless if it fails local electrical inspections, arrives damaged, or cannot be delivered within the facility's rigid construction timeline.

UL, IEC, CE, RoHS, and data center compliance checks

Regulatory compliance is a strict binary requirement; hardware either meets regional safety standards or it cannot be legally deployed. In North America, units must carry UL certification, specifically transitioning to the newer hazard-based UL 62368-1 standard, which has entirely superseded the legacy UL 60950-1.

European deployments require CE marking and strict adherence to RoHS 3 (Restriction of Hazardous Substances) directives. Furthermore, input connectors must align with standardized industrial formats, such as IEC 60309 or specific NEMA locking plugs, to guarantee compatibility with the facility's existing busway or sub-floor power whips.

Failure to verify these certifications during the Request for Proposal (RFP) process can result in failed building inspections, nullified insurance policies, and severely delayed facility commissioning.

Vendor quality, lead times, and support review

Vendor reliability and supply chain velocity are critical risk factors that often override pure technical specs. The global semiconductor and raw materials markets have introduced significant volatility into infrastructure lead times.

Standard, off-the-shelf configurations might ship within 2 to 4 weeks, whereas custom-configured units featuring specific cord lengths or specialized outlet colors can extend lead times to 12 or 16 weeks. Evaluating the manufacturer's quality control metrics is equally important.

Enterprise-grade hardware should boast a Mean Time Between Failures (MTBF) exceeding 300,000 hours. Additionally, operators should mandate hot-swappable network controllers; this critical feature allows technicians to replace a failed intelligence module without dropping power to the connected IT loads, preserving the 100% uptime mandate.

Cable management, shipping, and installation planning

Physical installation mechanics dictate the long-term operational ease of the data center. Cable management features, such as locking receptacles (e.g., P-Lock or universally locking C13/C19 ports), are essential to prevent accidental disconnections caused by vibration or human error during routine maintenance windows.

Shipping weight and packaging also impact deployment logistics. Vertical units typically weigh between 15 and 25 pounds, requiring careful handling and specialized toolless mounting brackets for rapid installation at scale.

Finally, implementing a strict color-coding schema—such as red chassis for the 'A' power feed and blue for the 'B' feed—has been shown to reduce human-induced power outages by up to 30%, making physical differentiation a highly recommended procurement requirement.

A Practical PDU Networking Decision Framework

Transforming diverse technical specifications into a finalized procurement decision requires an objective, quantifiable methodology. Establishing a standardized decision framework ensures that the chosen pdu unit aligns tightly with both immediate engineering needs and long-term business objectives.

Step-by-step scoring for technical and business fit

A weighted scoring matrix provides the most defensible mechanism for vendor selection. Procurement teams should define Minimum Viable Requirements (MVR)—such as 60°C ambient temperature ratings and SNMP v3 support—that immediately disqualify non-compliant vendors. Remaining candidates are then scored across a weighted spectrum.

By assigning scores from 1 to 5 for each category and multiplying by the weight, cross-functional teams can generate an objective baseline. This mathematical approach strips away marketing hyperbole and focuses purely on infrastructure compatibility and operational value.

Pilot testing, acceptance criteria, and post-installation review

The final phase of the framework involves rigorous empirical validation. Before committing to a multi-million-dollar facility rollout, operators should execute a 30-day pilot program deploying the shortlisted units in 2 to 4 high-density test racks.

Acceptance criteria during this pilot must be aggressive: network APIs must demonstrate response times under 500 milliseconds, bulk firmware updates must execute with a 100% success rate across daisy-chained units, and thermal imaging must confirm zero localized hot spots under peak 30 kW loads.

Post-installation reviews ensure that the theoretical models match physical reality. By treating power distribution as a core networking and telemetry asset rather than a passive utility, data center managers can safeguard their power backbone and ensure scalable, resilient infrastructure for future computational demands.

Key Takeaways

• The most important conclusions and rationale for pdu networking
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

Why is networked PDU selection critical for high-density racks?

Because AI and HPC racks can reach 30–50+ kW. A networked PDU gives real-time load and phase data, helping prevent overloads, breaker trips, and stranded capacity.

What should I define before comparing PDU models?

Confirm input voltage, amperage, rack form factor, ambient temperature, outlet mix, phase type, and redundancy needs. This avoids retrofits and ensures the PDU fits both current and planned loads.

When should a data center choose three-phase PDUs?

Choose three-phase when rack density is high or growing. It supports more power per rack, improves phase balancing, and can reduce cabling compared with single-phase designs.

How many outlets should a PDU have for future growth?

Audit your current C13, C19, and specialty outlet needs, then add a 20%–25% buffer. This helps you expand equipment without replacing the PDU too early.

Which PDU networking features matter most for operations?

Prioritize outlet-level monitoring, remote management, A/B power support, and DCIM integration. These features improve visibility, speed troubleshooting, and support uptime targets in managed data center environments.
