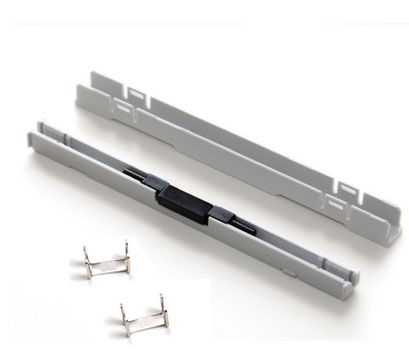

NSMS-925D Instruction
Mechanical splice for FTTH drop cable 2.0*3.0mm
NSMS-925D Instruction
| Item | Parameter |
|---|---|
| Applicable for | 3.1 x 2.0 mm dropcable |
| Optical fiber diameter | 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm & 900μm |
| Applicable mode | single & multimode |
| Operation time | about 30s (without fiber cut) |
| Insert loss | ≤ 0.15dB（1310nm & 1550nm） |
| Return loss | ≤ -45dB |
| Success rate | >98% |
| Reusability times | >10times |
| Fastening strength of naked fiber | >5 N |
| Clamping force of fiber with tight buffer | >8 N |
| Tensile strength | >50 N |
| Using temperature | -40～+75℃ |
| On-line tensile strength) | △ IL ≤ 0.2dB |
| Mechanical durability (500 times) | △ IL ≤ 0.2dB |
| Drop off test ( 4 meters high, cement floor, three directions) | △ IL ≤ 0.2dB |
Related Tools
Fiber cleaver
Stripper
Guide
